Resource overriding

Take a look at the strings sample in the SDK and maybe add an override for the device you are having trouble will,  You'll notices there's nothing needed in the jungles file for this to work

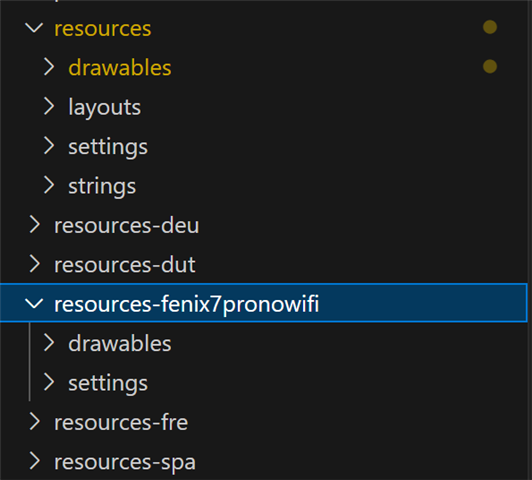

I already got strings to work. I have problems with drawables.xml and properties.xml. As I want to have them on one place in the end I want to refer to them using the jungles file. Atm it's not working using the jungles file, but also not directing directly to the directories as the image shows. It keeps using the original drawables.xml and properties.xml

I'll try reorganising the directory tree like it is in the string sample.

Okay. I managed to work around solve it. It was not possible to override drawables.xml and properties.xml. As soon as I deleted them from the default resource directory the MIP redirect via jungles worked immediately.

I have setup an amoled-resources directory besides the mip-resources directory for the 'default' drawables.xml and properties.xml

This works:

But is this a bug or a feature?

It depends what you are expecting to happen when you override resources.

If you are expecting entire files to be overridden (i.e. you want resources/drawables.xml and resources/properties.xml to be completely ignored, because the same files exist in mip-resources/), that's not how it works.

The way it works is that resources (like strings) with the same ID are overridden. (And ofc any new resource IDs in the specified path are also used.)

So any given resource in mip-resources/ should take precedence over a resource with the same ID in a default resources path (such as resources/), in your original example, for devices such as fenix7x.

But any resource in a default resource path (such as resources/) which does not have the same ID as a resource in mip-resources will not be removed.

When you use resource overrides in this way, you can only add or change default resources, you cannot delete default resources (if that's what you're trying to do).
