Semi-transparent bitmap on B&W watches (e.g. Instinct 2) - SDK 7.4.3 issue

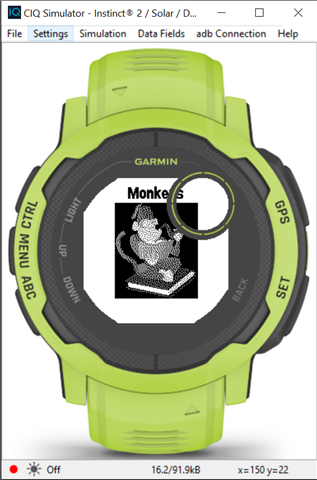

Works for me, with a modified version of the standard New Project > Device App template.

I changed the template project:

- to not draw the layout (so I could control the background colour, in order to prove that transparency is working)

- to set the background colour to black (or white) and clear the screen

- to draw the monkey bitmap programmatically

diff --color -r -u tmp2/TestIT2/source/TestIT2View.mc TestIT2/source/TestIT2View.mc
--- tmp2/TestIT2/source/TestIT2View.mc
+++ TestIT2/source/TestIT2View.mc
@@ -2,9 +2,10 @@
 import Toybox.WatchUi;

 class TestIT2View extends WatchUi.View {
-
+    var bitmap;
     function initialize() {
         View.initialize();
+        bitmap = loadResource(Rez.Drawables.id_monkey);
     }

     // Load your resources here
@@ -19,9 +20,20 @@
     }

     // Update the view
     function onUpdate(dc as Dc) as Void {
         // Call the parent onUpdate function to redraw the layout
-        View.onUpdate(dc);
+        // View.onUpdate(dc);
+
+        // test white bg
+        //var bgColor = Graphics.COLOR_WHITE;
+
+        // test black bg
+        var bgColor = Graphics.COLOR_BLACK;
+
+        dc.setColor(bgColor, bgColor);
+        dc.clear();
+        dc.drawBitmap(30, 30, bitmap);
     }

     // Called when this View is removed from the screen. Save the

To be clear, setColor() has no effect on dc.drawBitmap(), beyond the fact that the specified bg colour was used to clear the screen. For example, if I clear the screen with black, then set the fg/bg colours to white, it doesn't affect the above output:

    function onUpdate(dc as Dc) as Void {
        // Call the parent onUpdate function to redraw the layout
        // View.onUpdate(dc);

        // test white bg
        //var bgColor = Graphics.COLOR_WHITE;

        // test black bg
        var bgColor = Graphics.COLOR_BLACK;

        dc.setColor(bgColor, bgColor);
        dc.clear();
        dc.setColor(Graphics.COLOR_WHITE, Graphics.COLOR_WHITE); // doesn't do anything
        dc.drawBitmap(30, 30, bitmap);
    }

Hi FlowState

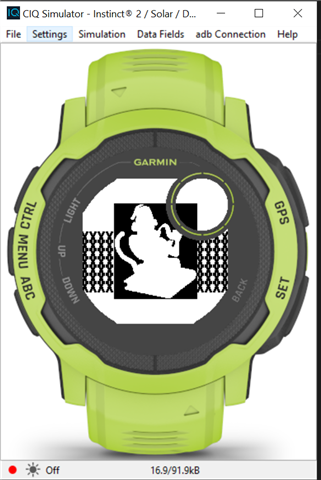

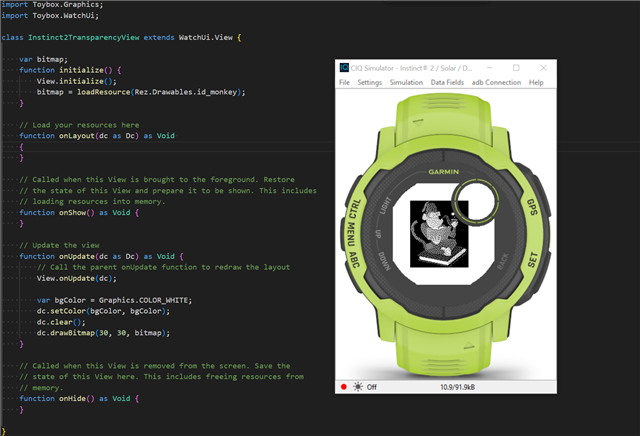

I did the same - I created a new project and just draw the money.png on white background and here is the result:

Here is the the link to the zipped sample: https://we.tl/t-G9jUZx9S6s

My dev environment:

- Windows 10 Pro

- VS Code 1.98.2

- Connect IQ SDK 7.4.3

STeN
