PowerGlass charge lever by layer in percents? Who knows?

Prostobzor
over 5 years ago

Does anybody know what exactly charge lever in percent (%) for each PowerGlass layer?

DC Rainmaker told about it:

orange circle line - maximum charge lever  - but what exactly? 100% or 90% ??

Second layer - minimum solar charge - for the whole glass  - what charge level? 10 or 20 or 30 % ??

I couldn't such info in the Garmin video - https://www.youtube.com/watch?time_continue=40&v=uKZyRbrm5V4&feature=emb_title

and in this Garmin help - https://support.garmin.com/en-US/?faq=kGDYS8VOj30eMl3lMyqSi6

Top Replies

All Replies

  • 0 over 5 years ago

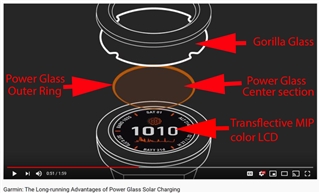

    Your first picture is incorrectly labeled.  Here is how it should be:

    Over the display there are two layers: the Gorilla Glass Layer and the Power Glass layer.

    The Power Glass Layer has two components: Outer ring which is 100% active and not transparent, and the remainder of the layer which is "semi-transparent" (according to Garmin (see 0:45 in your attached video)) and is much less than 100% active.  I do not know the specific active percentage of the main area of the Power Glass, but I would guess it is only about 10% which means it would transmit about 90% of the light passing through it - said another way, it would obstruct about 10% of the display, but because it is composed of very thin strands ("photovoltaic solar traces" according to Garmin in the video), it is essentially transparent.

    HTH

  • 0 over 5 years ago in reply to gaijin

    Thanks for scheme and answer!

    Did you mean, that PowerGlass is an one part? Right?

    It's very strange - it's not possible to find out how to operate PowerGlass officially with ratio zones / percents of charge  :-(

  • 0 over 5 years ago in reply to Prostobzor

    You're welcome!

    Yes, PowerGlass is one part / one layer with two components - outer ring and central area.

    This info from Garmin in the "Specs" part of their product description doesn't answer your question of how the PowerGlass operates in percentages, but I think it has all the info the general user needs to know; i.e. how much light is needed to obtain the stated charge improvements:

    Smartwatch: Up to 21 days +3 days*
    GPS: Up to 60 hours +6 hours**
    GPS and music: Up to 15 hours +1 hour**
    Max battery GPS mode: 120 hours + 28 hours**
    Expedition GPS activity: 46 days + 10 days*
    Battery saver watch mode: 80 days + 40 days*

    *assuming all-day wear with 3 hours per day outside in 50,000 lux conditions
    **assuming use in 50,000 lux conditions

    HTH

  • 0 over 5 years ago in reply to gaijin

    Depanding on the settings, the battery consumption is up to 4%-5%/ hrs with GPS, so the maximum solar load is about 30% (= +6 hrs). But maybe it is even less, because we donˋt know, how Garmin is calculating the +6 hrs with GPS.

  • 0 over 5 years ago in reply to Volker
    Volker said:
    Depanding on the settings, the battery consumption is up to 4%-5%/ hrs with GPS, so the maximum solar load is about 30% (= +6 hrs). But maybe it is even less, because we donˋt know, how Garmin is calculating the +6 hrs with GPS.

    If we take this part of the table as a base:

    GPS: Up to 60 hours +6 hours**

    **assuming use in 50,000 lux conditions

    And if we further assume this is based on starting at 100% charge and ending at 0% charge.

    Then we can see that without any solar charging, the watch will use 1.667% (100% / 60 Hours) of the charge per hour and with solar charging, the watch will use 1.515% (100% / 66 Hours) of the charge per hour.

    So, with best case continuous exposure to sunlight, the best we can hope for when using GPS is a 0.152% per hour decrease in battery consumption.

    In my opinion, hardly worth the added expense, but YMMV.

    HTH

  • 0 over 5 years ago in reply to gaijin

    So, acc. to Garmin : GPS: Up to 60 hours +6 hours**

    Let's don't calculate GPS work. Only Solar charge will take into account.

    6 hours - 100%

    1 hour - x

    x = (100 x 1) / 6 = 16,6 % for each Solar charge with 50 000 lux

    What do you think about this calculation?

  • 0 over 5 years ago in reply to Prostobzor

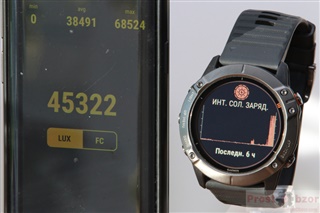

    By the way - I've got a full charge indicator before 50 000 lux.

  • 0 over 5 years ago in reply to Prostobzor

    Sorry, who knows how to edit title for post? I want to change to new one - "PowerGlass charge level by layer in percents? Who knows?" - "lever"  - it was misprint :-( pardon.

  • 0 over 5 years ago in reply to Prostobzor

    btw a smartphone isn't a certified light-meter

  • 0 over 5 years ago in reply to Prostobzor
    Prostobzor said:

    So, acc. to Garmin : GPS: Up to 60 hours +6 hours**

    Let's don't calculate GPS work. Only Solar charge will take into account.

    6 hours - 100%

    1 hour - x

    x = (100 x 1) / 6 = 16,6 % for each Solar charge with 50 000 lux

    What do you think about this calculation?

    No, it doesn't work that way.

    The 60 hours is battery only, no solar charge help. So 100 / 60 = 1.667%/hour

    The 66 hours is ALL battery AND solar help. So 160 / 66 = 1.515%/hour

    The +6 hours does not and cannot stand by itself because the watch never runs on solar energy only.

    Said another way, from 100% charge to 0% charge using only GPS as Garmin has tested, the watch will run for some duration of time between 60 hours (no solar help) and 66 hours (maximum solar help).

    HTH
