Cannot make FitContributions charts to work

I am trying to display charts on the Garmin Connect App trough FitCOntributions

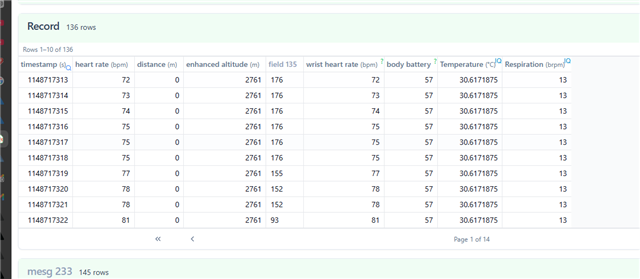

these are the two fields I created in the .fit file that I am displaying with https://www.fitfileviewer.com/

I have created the fields like:

 _tempField = _session.createField(
    "temperature",
    0,
    FitContributor.DATA_TYPE_FLOAT,
    {
        :mesgType => FitContributor.MESG_TYPE_RECORD,
        :units => "°C"
    }
);
_respField = _session.createField(
    "respiration",
    1,
    FitContributor.DATA_TYPE_FLOAT,
    {
        :mesgType => FitContributor.MESG_TYPE_RECORD,
        :units => "brpm"
    }
);

and I have in the resources file in resources/resources.xml

<resources>
    <fitContributions>
        <fitField
            id="0"
            displayInActivitySummary="true"
            displayInChart="true"
            displayInActivityLaps="true"
            sortOrder="0"
            precision="1"
            dataLabel="@Strings.Temp"
            unitLabel="@Strings.Celcius"
		/>
		<fitField
            id="1"
            displayInActivitySummary="true"
            displayInChart="true"
            displayInActivityLaps="true"
            sortOrder="1"
            precision="0"
            dataLabel="@Strings.Resp"
            unitLabel="@Strings.Brpm"
		/>
    </fitContributions>
</resources>

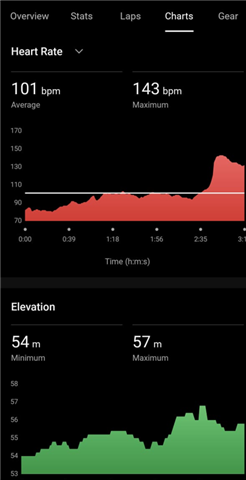

When I create the activity and save it to Garmin Connect I only see these 2 normal charts

I set the data correctly with setData, and it is showing correct in the .fit file
