Update SubLabels of Menu2 when a data change

jim_m_58 said:

If you are looking for something more dynamic, why are you using  Menu2 and not just updating a "normal" view?

Maybe bc they still want all the UI/functionality of Menu2? I wonder why Menu2 provides the updateItem() method if it's not meant to be dynamic...

jim_m_58 said:

If I understand, it still strikes me as something that would be easier to do without Menu2.  Your own view updating on a timer, showing the current value, and then something like onSelect to set the variable, and if you have more than one thing, use up/down to move between them.  Then onBack to exit

Yes clearly it is far simpler to completely reimplement the functionality, look, and feel of Menu2 in a custom view, instead of figuring out how to update Menu2 dynamically using a timer.

9052720 said:

I tried with the timer method but it seems to work only for pages and not for delegates.

Use a timer to programmatically update the menu using Menu2.updateItem() (followed by a call to WatchUi.requestUpdate())

Here's an example that modifies the SDK Menu2Sample sample so that the sublabel of the Toggles menu item displays a counter that increments every second. I've tested this in the sim (fr955), and a real Forerunner 955.

In the Menu2Sample, the MenuTestDelegate class creates a Menu2 when the user "presses the Menu button" at the top level (e.g. hold UP on 5-button watches). I modified the class to:

- store references to the menu it creates and the first item of the menu ("Toggles")

- store an integer counter (starting at 0)

- start a timer when the user presses Menu

- when the timer expires, counter is incremented and the label of the Toggles item is updated with the current value of counter

Complete MenuTestDelegate.mc source:

//
// Copyright 2018-2021 by Garmin Ltd. or its subsidiaries.
// Subject to Garmin SDK License Agreement and Wearables
// Application Developer Agreement.
//

import Toybox.Graphics;
import Toybox.Lang;
import Toybox.WatchUi;


//! This delegate is for the main page of our application that pushes the menu
//! when the onMenu() behavior is received.
class Menu2TestDelegate extends WatchUi.BehaviorDelegate {
    var timer;
    var menu;
    var dynamicItem;
    var counter = 0;
    //! Constructor
    public function initialize() {
        BehaviorDelegate.initialize();
        timer = new Timer.Timer();
    }

    //! Handle the menu event
    //! @return true if handled, false otherwise
    public function onMenu() as Boolean {
        // Generate a new Menu with a drawable Title
        menu = new WatchUi.Menu2({:title=>new $.DrawableMenuTitle()});
        timer.start(method(:onTimer), 1000, true);
        // Add menu items for demonstrating toggles, checkbox and icon menu items
        dynamicItem = new WatchUi.MenuItem("Toggles", counter.toString(), "toggle", null);
        menu.addItem(dynamicItem);
        menu.addItem(new WatchUi.MenuItem("Checkboxes", null, "check", null));
        menu.addItem(new WatchUi.MenuItem("Icons", null, "icon", null));
        menu.addItem(new WatchUi.MenuItem("Custom", null, "custom", null));
        WatchUi.pushView(menu, new $.Menu2TestMenu2Delegate(), WatchUi.SLIDE_UP);
        return true;
    }

    // if this function is protected or private, then it's inappropriately optimized away.
    // seems like a compiler bug
    public function onTimer() as Void {
        counter++;
        System.println(counter);
        if (dynamicItem != null && menu != null) {
            dynamicItem.setSubLabel(counter.toString());
            menu.updateItem(dynamicItem, 0);
            WatchUi.requestUpdate();
        }
    }
}

//! This is the custom drawable we will use for our main menu title
class DrawableMenuTitle extends WatchUi.Drawable {

    //! Constructor
    public function initialize() {
        Drawable.initialize({});
    }

    //! Draw the application icon and main menu title
    //! @param dc Device Context
    public function draw(dc as Dc) as Void {
        var spacing = 2;
        var appIcon = WatchUi.loadResource($.Rez.Drawables.LauncherIcon) as BitmapResource;
        var bitmapWidth = appIcon.getWidth();
        var labelWidth = dc.getTextWidthInPixels("Menu2", Graphics.FONT_MEDIUM);

        var bitmapX = (dc.getWidth() - (bitmapWidth + spacing + labelWidth)) / 2;
        var bitmapY = (dc.getHeight() - appIcon.getHeight()) / 2;
        var labelX = bitmapX + bitmapWidth + spacing;
        var labelY = dc.getHeight() / 2;

        dc.setColor(Graphics.COLOR_BLACK, Graphics.COLOR_BLACK);
        dc.clear();

        dc.drawBitmap(bitmapX, bitmapY, appIcon);
        dc.setColor(Graphics.COLOR_WHITE, Graphics.COLOR_TRANSPARENT);
        dc.drawText(labelX, labelY, Graphics.FONT_MEDIUM, "Menu2", Graphics.TEXT_JUSTIFY_LEFT | Graphics.TEXT_JUSTIFY_VCENTER);
    }
}

Patch file with changes:

diff -r -u Menu2Sample/monkey.jungle Menu2Sample.new/monkey.jungle
--- Menu2Sample/monkey.jungle	2024-01-11 13:36:00.207965000 -0500
+++ Menu2Sample.new/monkey.jungle	2024-06-08 17:51:26.616639500 -0400
@@ -1 +1,2 @@
 project.manifest = manifest.xml
+project.typecheck = 0
\ No newline at end of file
diff -r -u Menu2Sample/source/MenuTestDelegate.mc Menu2Sample.new/source/MenuTestDelegate.mc
--- Menu2Sample/source/MenuTestDelegate.mc	2024-01-11 13:36:00.242975100 -0500
+++ Menu2Sample.new/source/MenuTestDelegate.mc	2024-06-08 18:01:41.767740300 -0400
@@ -8,29 +8,45 @@
 import Toybox.Lang;
 import Toybox.WatchUi;

+
 //! This delegate is for the main page of our application that pushes the menu
 //! when the onMenu() behavior is received.
 class Menu2TestDelegate extends WatchUi.BehaviorDelegate {
-
+    var timer;
+    var menu;
+    var dynamicItem;
+    var counter = 0;
     //! Constructor
     public function initialize() {
         BehaviorDelegate.initialize();
+        timer = new Timer.Timer();
     }

     //! Handle the menu event
     //! @return true if handled, false otherwise
     public function onMenu() as Boolean {
         // Generate a new Menu with a drawable Title
-        var menu = new WatchUi.Menu2({:title=>new $.DrawableMenuTitle()});
-
+        menu = new WatchUi.Menu2({:title=>new $.DrawableMenuTitle()});
+        timer.start(method(:onTimer), 1000, true);
         // Add menu items for demonstrating toggles, checkbox and icon menu items
-        menu.addItem(new WatchUi.MenuItem("Toggles", "sublabel", "toggle", null));
+        dynamicItem = new WatchUi.MenuItem("Toggles", counter.toString(), "toggle", null);
+        menu.addItem(dynamicItem);
         menu.addItem(new WatchUi.MenuItem("Checkboxes", null, "check", null));
         menu.addItem(new WatchUi.MenuItem("Icons", null, "icon", null));
         menu.addItem(new WatchUi.MenuItem("Custom", null, "custom", null));
         WatchUi.pushView(menu, new $.Menu2TestMenu2Delegate(), WatchUi.SLIDE_UP);
         return true;
     }
+
+    public function onTimer() as Void {
+        counter++;
+        System.println(counter);
+        if (dynamicItem != null && menu != null) {
+            dynamicItem.setSubLabel(counter.toString());
+            menu.updateItem(dynamicItem, 0);
+            WatchUi.requestUpdate();
+        }
+    }
 }

 //! This is the custom drawable we will use for our main menu title

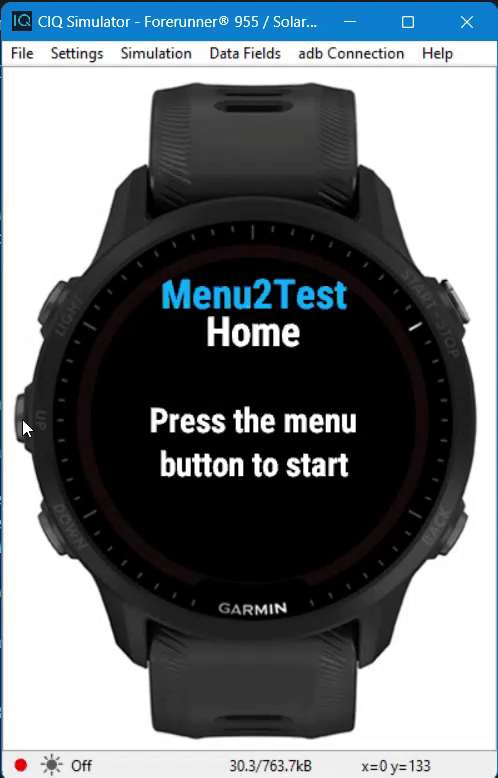

Simulator output:
