How to vertically center multi line text area

Thank you very much for the response; this solved the situation.

However, I would like to ask where I can learn more about this syntax and why it works when the :justification symbol for a TextArea specifies only 'Graphics.TextJustification or Lang.Number' in the API. How can I find out the syntax for using the '|' vertical line from this?

developer.garmin.com/.../TextArea.html

both TEXT_JUSTIFY_CENTER and TEXT_JUSTIFY_VCENTER are text justifications, and the "|" is "or" so you are or-ing the two together.

Unfortunately it's not really documented, but Graphics.TextJustification is (sort of) a bitwise enumeration.

In a normal bitwise enumeration, each value is a "flag" corresponding to a single bit, and multiple "flags" can be combined using bitwise OR ("|").

Here's a fake example:

COLOR_RED =    1 (binary 00000001)
COLOR_GREEN =  2 (binary 00000010)
COLOR_BLUE =   4 (binary 00000100)
COLOR_YELLOW = 8 (binary 00001000)

(I put leading 0s in the binary values for clarity, but it doesn't make a difference.)

In this case, each enum value is a power of 2 which corresponds to a single binary digit (bit).

Red is the 1st bit from the right, green is the 2nd bit, blue is the 3rd bit, and yellow is the 4th bit. When you perform bitwise OR on two numbers, each bit that's set (equal to 1) in either of the two numbers will be also be set in the result. All other bits in the result will be 0.

e.g.

var x = COLOR_RED;  // binary 0001
var y = COLOR_BLUE; // binary 0100
var z = x | y;      // binary 0101

In this case, z represents "COLOR_RED or COLOR_BLUE".

Another example:

var t = COLOR_RED | COLOR_GREEN | COLOR_YELLOW; // binary 1011

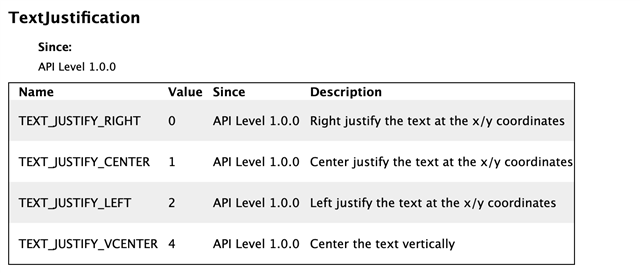

in Connect IQ, TextJustification is a combination of a normal enumeration (which is just a list of numbers) and a bitwise enumeration (where flags can be combined with bitwise OR).

[https://developer.garmin.com/connect-iq/api-docs/Toybox/Graphics.html#TextJustification-module]

Here's the binary representation of each value:

TEXT_JUSTIFY_RIGHT =   0 (decimal) = 00000000 (binary)
TEXT_JUSTIFY_CENTER =  1 (decimal) = 00000001 (binary)
TEXT_JUSTIFY_LEFT =    2 (decimal) = 00000010 (binary)
TEXT_JUSTIFY_VCENTER = 4 (decimal) = 00000100 (binary)

As you can see, TEXT_JUSTIFY_RIGHT doesn't have any bits set, so TextJustification isn't a normal bitwise enum. What's happening here is that it doesn't make sense to combine RIGHT, CENTER or LEFT with each other, so those 3 values are just "normal" enum values which don't necessarily correspond to a single bit. VCENTER does correspond to a single bit, as it can be combined with any one of RIGHT, CENTER, or LEFT.

So in this scheme, the bits are laid out as follows:

00000???
      ^^ 2 bits for (horizontal) right/center/left justification
     ^   1 bit for vertical centering


So:

Graphics.TEXT_JUSTIFY_CENTER | Graphics.TEXT_JUSTIFY_VCENTER
= 1 | 4
= 0001 | 0100 (binary)
= 0101
= 5 (decimal)

If I were writing a function to interpret the kind of TextJustification value that would be passed into a CIQ Graphics API function, it could look like this:

function printTextJustification(justification as Graphics.TextJustification or Number) as String {
    // the rightmost 2 bits are used for horizontal justification
    var horizontalJustification = justification & 3; // 3 (decimal) = 0011 (binary)
    // the 3rd bit is used for vertical justification
    var verticalJustification = justification & Graphics.TEXT_JUSTIFY_VCENTER; // 4 (decimal) = 0100 (binary)

    // "&" = "bitwise AND". Given "z = x & y", z will have a bit set (equal to 1)
    // if both x and y have the same bit set

    var justificationString = "Horizontal justification: ";
    switch (horizontalJustication) {
        case TEXT_JUSTIFY_CENTER:
            justificationString += "Center";
            break;
        case TEXT_JUSTIFY_LEFT:
            justificationString += "Left";
            break;
        case TEXT_JUSTIFY_RIGHT:
            justificationString += "Right";
            break;
    }

    justificationString += "| Vertical justification: ";
    if (verticalJustification != 0) {
        justificationString += "Centred";
    } else {
        justificationString += "None";
    }
    return justificationString;
}

EDIT: textJustificationToString() would be a better name than printTextJustification(), but the forum won't let me edit the code.

Of course you don't really have to understand any of that to use the TextJustification "enumeration".

It sure would be nice if the docs said that TEXT_JUSTIFY_VCENTER can be combined with any one of the other three using "|" tho.

More on bitwise operations ("|" / OR, "&" / AND): https://en.wikipedia.org/wiki/Bitwise_operation

I can't find a great comprehensive resource on bitwise enumerations right now, probably because they're all language-specific. Here's a couple of ok ones:

https://www.c-sharpcorner.com/article/understanding-bitwise-enums-in-c-sharp/

timdeschryver.dev/.../flagged-enum-what-why-and-how

I will say that the main reason to use bitwise enumerations is efficiency.

This was just amazing to read. Thank you for your time, knowledge and help!

No problem! I will also note that hexadecimal (base 16) is very often used to describe bitwise enums (and other values where individual bits are significant) because each digit corresponds to exactly 4 bits, so it's relatively easy to convert back and forth (or just to think of a hex value in terms of bits.) It's also sometimes useful when dealing with numbers that are known to occupy a certain number of bytes (1 byte = 8 bits), such as memory addresses. (That's why a hex editor, which allows you to edit the raw bytes of a file, shows memory addresses and data in hex.)

e.g.

0x01 (hex) = 0b00000001 (binary)
0x02 = 0b00000010
0x04 = 0b00000100
0x08 = 0b00001000
0x10 = 0b00010000
0x20 = 0b00100000
0x40 = 0b01000000
0x80 = 0b10000000

In Monkey C (and many other languages, including Javascript and Python), the "0x" prefix denotes a hex value (e.g. 0xFF = 255). Python and Javascript (but not Monkey C) also use the "0b" prefix for binary.
