loadResource Out Of Memory Error Details: Failed invoking <symbol>

li2niu over 2 years ago

Hi, I was loading drawables with the code below.

var bgBitmap = Ui.loadResource(Rez.Drawbles.bg);

The peak mem used is 43kB but in which case I got an OOM error. Curious about why?

Device: fr245(m) (CIQ 3.3.1)

SDK: 6.3.0

jim_m_58 over 2 years ago

Is it a CIQ 4 device with the graphics pool? Which device? In that case the graphics pool may be out of memory while your app still has memory.

li2niu over 2 years ago in reply to jim_m_58

Sorry for my insufficient info. fr245(m) with ciq 3.3.1

_psx_ over 2 years ago in reply to li2niu

Peek info you see is BEFORE calling function, maybe Rez.Drawbles.bg is e.g. 60kB.

jim_m_58 over 2 years ago in reply to li2niu

How big is the image? Lots of colors?

li2niu over 2 years ago in reply to jim_m_58

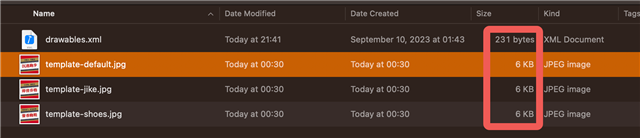

I have compressed them. 3 Images' total size is less than 18kB

li2niu over 2 years ago in reply to _psx_

_psx_ said:
BEFORE

Good idea!

li2niu over 2 years ago in reply to _psx_

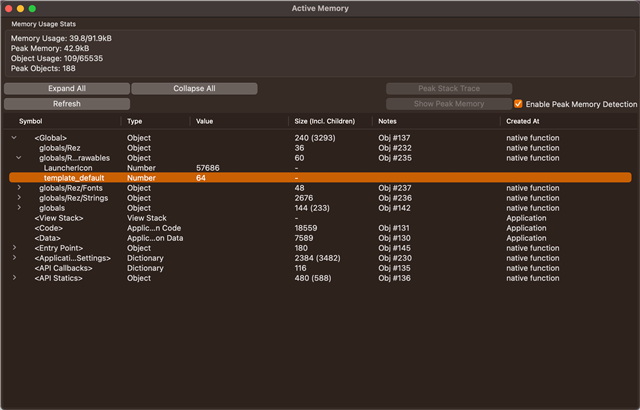

I saw the image 'template_default' has no size. But the total of Drawables is 60B

_psx_ over 2 years ago in reply to li2niu

make test

0. exit sim

1. define global var tstBMP and load into it bitmap

2. go to compiler.json in ...\Roaming\Garmin\ConnectIQ\Devices\fr245m (windows)

3. add 100kb memory, modify line

{
            "memoryLimit": 198304,
            "type": "watchFace"
        }

4. run app in sim, run memory monitor and check in globals size of tstBMP

5. look into peek

4. revert compiler.json

li2niu over 2 years ago in reply to _psx_

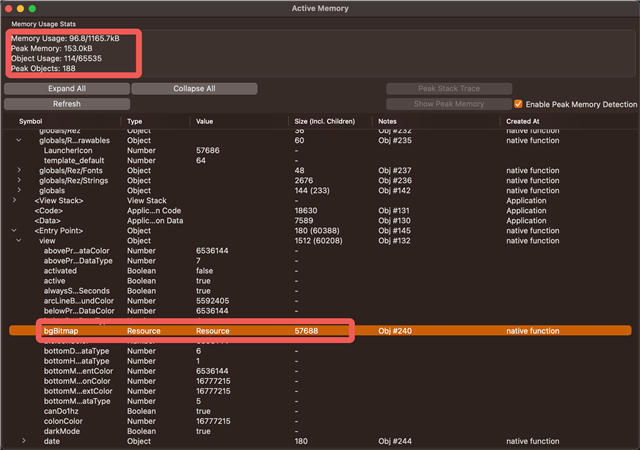

Incredible! The size becomes 60kB after being loaded!

_psx_ over 2 years ago in reply to li2niu

well... and probably you have 2 bitmaps in memory for some times due to peek +~60kB
