Draw a simple HR chart on watchface & Unhandled exception on device

Hello

I'm creating a new watchface for EPIX2.

I tried to draw a HR chart using history data thanks to ActivityMonitor.getHeartRateHistory()

I was inspired by the example availlable at https://developer.garmin.com/connect-iq/api-docs/Toybox/ActivityMonitor.html but I had to fix the "Watchdog Tripped Error - Code Executed Too Long" by replacing the while(true) { }

Here I am now:

            var hrDuration = 240; //! x last minutes of HR
			var hrIterator = ActivityMonitor.getHeartRateHistory(hrDuration, true); //! get  last minutes of HR
			var hrMax = (220-(info.year-profile.birthYear)*1.1); //! 10% margin added to the basic calculus rule
			var hrMin = profile.restingHeartRate; //! data store in the user profile
			var previous = hrIterator.next(); //! get the previous HR
			var lastSampleTime = null; //! get the last

			var hChart = 44;
			var xStartHr = 280;
			var yStartHr = 150;
			var genericZoneInfo = Us.getHeartRateZones(Us.HR_ZONE_SPORT_GENERIC);
			var hrOrd;

			//! Draw the cHR chart
			for (var i=0;i<=hrDuration;i+=1) {
			   var sample = hrIterator.next();
			   if (null!=sample) { //! null check
			        if (sample.heartRate != ActivityMonitor.INVALID_HR_SAMPLE && previous.heartRate != ActivityMonitor.INVALID_HR_SAMPLE) { //! check for invalid samples
		                if (sample.heartRate != null && sample.heartRate != 0) {
		                	hrOrd = ((sample.heartRate-hrMin)*(hChart-2)/(hrMax-hrMin)); //! Height in pixel of current HR in chart / -2 to substract 2px of the frame line
							dc.setColor(Gfx.COLOR_BLUE,Gfx.COLOR_TRANSPARENT);
							if (sample.heartRate >= genericZoneInfo[1]) {dc.setColor(Gfx.COLOR_GREEN, Gfx.COLOR_TRANSPARENT);}
							if (sample.heartRate >= genericZoneInfo[2]) {dc.setColor(Gfx.COLOR_YELLOW,Gfx.COLOR_TRANSPARENT);}
							if (sample.heartRate >= genericZoneInfo[3]) {dc.setColor(Gfx.COLOR_ORANGE,Gfx.COLOR_TRANSPARENT);}
							if (sample.heartRate >= genericZoneInfo[4]) {dc.setColor(Gfx.COLOR_RED,   Gfx.COLOR_TRANSPARENT);}
							if (sample.heartRate >= genericZoneInfo[5]) {dc.setColor(Gfx.COLOR_PURPLE,Gfx.COLOR_TRANSPARENT);}
		                	dc.drawLine(xStartHr-i,yStartHr-hrOrd,xStartHr-i,yStartHr); //! Draw chart if with have a HR value
		                } else { //! Draw a blank if we have no value
		                	dc.setColor(Gfx.COLOR_DK_GRAY,Gfx.COLOR_TRANSPARENT);
		                	dc.drawLine(xStartHr-i,yStartHr-hChart,xStartHr-i,yStartHr);
		                }
			        }
			    }
			}

It seems to work on the simulator. But I got instant unhandled exception with the device.

Have you ever experienced this kind of trouble ?

Thank you for your help

Gautier

jim_m_58 over 3 years ago

for (var i=0;i<=hrDuration;i+=1) {

What is hrDuration? You might want to use

while(sample!=null) there.

(maybe include a max number of samples you want to display too)

and then do the sample=hrInterator.next() at the end of that while loop instead of the beginning

XGotX over 3 years ago in reply to jim_m_58

Hi Jim,

Thank you for your help!

jim_m_58 said:
in

for (var i=0;i<=hrDuration;i+=1) {

What is hrDuration?

hrDuration is the duration in minutes I want to get: 240 for 4 hours of heart rate history.

If I understand correctly getHeartRateHistory() , I can substitue it with:

var hrDuration = new Time.Duration(14400);

jim_m_58 said:
You might want to use

while(sample!=null) there.

(maybe include a max number of samples you want to display too)

and then do the sample=hrInterator.next() at the end of that while loop instead of the beginning

OK: I tried this new lite version:

var sample=hrIterator.next();
var i=0;

//! Draw the HR chart
while(sample!=null) {//! null check
    if (sample.heartRate!=ActivityMonitor.INVALID_HR_SAMPLE && previous.heartRate!=ActivityMonitor.INVALID_HR_SAMPLE) { //! check for invalid samples
        if (sample.heartRate!=0) {
            hrOrd=((sample.heartRate-hrMin)*(hChart-2)/(hrMax-hrMin)); //! Height in pixel of current HR in chart / -2 to substract 2px of the frame line
			dc.setColor(Gfx.COLOR_BLUE,Gfx.COLOR_TRANSPARENT);
			   dc.drawLine(xStartHr-i,yStartHr-hrOrd,xStartHr-i,yStartHr); //! Draw chart if with have a HR value
        }
    }
    sample = hrIterator.next(); //! Get the next sample
    i+=1; //! shift to the next px of the chart
}

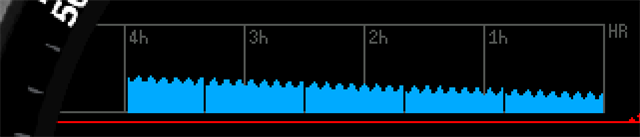

It works perfectly with the simu:

But still the same unhandled exception with the EPIX2. instant crash !

jim_m_58 over 3 years ago in reply to XGotX

On which line of code do you get the exception? on the device under garmin\apps\logs there is a ciq_log file where you can see your crash

XGotX over 3 years ago in reply to jim_m_58

You are right!

I've a line number in the debug now! 325:

hrOrd=((sample.heartRate-hrMin)*(hChart-2)/(hrMax-hrMin)); //! Height in pixel of current HR in chart / -2 to substract 2px of the frame line

And it works perfectly now on my device if I replace the line by a simple

hrOrd=10;

The problem is in hrOrd calulation finally!
