is it possible to use ANT Timesync in ConnectIQ

I want to use ANT Timesync to synchronise my device to ConnectIQ. Both devices are writing FIT files and it would be beneficial to synchronise these, and ideally I would be sending the messages from ConnectIQ to my device. I find no mention of it in the API documentation. Is there any way to configure it?

Travis.ConnectIQ over 5 years ago

You should be able to use the ANT GenericChannel API for sending a message like this.

bgarrood over 5 years ago in reply to Travis.ConnectIQ

Hi Travis. I have looked at GenericChannel API but no mention of ANT timesync. The API itself needs to put in the delay between when a message was populated and when it is actually sent by the device, so need to explicitly tell it to use timesync. Any ideas?

jim_m_58 over 5 years ago in reply to bgarrood

One thing to note is if a device gets the time by way of timesync with CIQ, from CIQ there is no way to set the time on the device

bgarrood over 5 years ago in reply to jim_m_58

Sorry, to be totally clear, can you confirm there is no way to send an ANT Timesync message from a CIQ app? In the ANT API the equivalent command would be sd_ant_time_sync_broadcast_tx()

jim_m_58 over 5 years ago in reply to bgarrood

You can write ant code to get a time value, but once you have it, there's really not much you can do with it.

You can't set the clock on a CIQ device.

Maybe I'm missing what you are trying to synchronize.

If you're using GPS, that will provide a close sync of the times on devices.

Travis.ConnectIQ over 5 years ago

How perfectly do you need to get the clocks aligned?

bgarrood over 5 years ago in reply to Travis.ConnectIQ

Hi Travis,

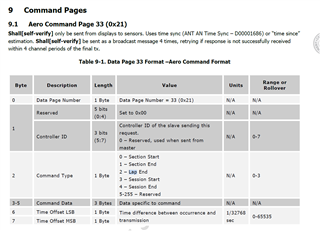

Use of ANT Timesync is to send a lap command from head unit to our device. this is based on the temporarily shelved ANT+ aero profile. This can come from button press or GPS gate, or lap trigger in velodrome. Please see attached. We don't need this full 1/32768s resolution, but for consistency would like 1/100s or better.

Thank you.

Barney
