News for Widget Glances!

Hi Jim, I just posted here: following text:

Garmin-Blake, I updated my widget battery info to support glance view. I developed it initially for a watch which supports glance view and enabled the FR945 to utilize that code. But the simulator doesn't show the glance view for the 945 (ok, i probably need to wait for an update). But the export of my widget from the development environment doesn't seems to take it into account either. I am ending up with a glance view which shows just the name of the widget...

Do I have to wait for the development environment?

My widget Time tracker lost all the data it stored with the update. This didn't happen in the past on any update. This is not nice Garmin.My other widgets work still as expected. Time tracker doesn't support glance view currently and if no data is stored by the user it may be slightly below the 32 kB limit, with data storage I am probably above this limit. May it be that for this reason data is deleted? Again, this is not nice Garmin, since I rely on this data.

I don't do anything special in my widgets  for glances (glance code is in for every platform), so when I got the FW with glances, I just had to enable glance view and things worked.

The sim doesn't support glances on the 945, so maybe the next SDK will.

When you say you're close to 32k, it's really 28k,.  I'd look at memory if your doing backgrounding.  When onBackgroundData runs, you could have a spike when the widghet has both the current data and the data passed in onBackgroundData.

As far as memory that's used in the different things, for backgrounding, it;'s stuff with the (:background) annotation.  For glance view, stuff with the (:glance) annotation along with the (:background) annotation, and for the regular view, it's everything.  AppBase is always loaded (it's used for backgrounding).

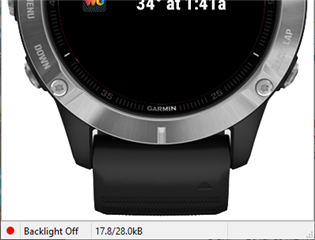

To check on memory in the sim, You'll see that at the bottom of the sim window when you're in glance view (3.1.6 SDK)

The difference with the marq is odd....  Are you using the (:glance) annotation?  If you don't you may be loading more than you need when you're doing glances.  With the widget above, I'm at 17.8kb for all sim targets with glances.

The full screen widget is a bit over 34kb

Since you have the 945, maybe add some println calls in various places and see what's happening - what's getting called, what's happened to the data, etc.

Hm, how could I utilitze that println calls on the real watch? I never did that before!!!

I double checked today again the memory consumption and it is for all watches which support glances 10 kB.

This is what my main application looks like:

using Toybox.Application    as App;
using Toybox.WatchUi        as Ui;
using Toybox.Background;


var batData;
var myTimer;
//var theme;

(:background)
class BatteryInfoApp extends App.AppBase {


    function initialize() {
        AppBase.initialize();
    }

    function getInitialView() {
    	if(Toybox.System has :ServiceDelegate) {
    		Background.registerForTemporalEvent(new Time.Duration(300));
    	}
		initBatData();
        return [ new BatteryInfoView(), new batteryInfoDelegate()];
    }

    function onBackgroundData(data) {
		initBatData();
        batData.checkBgData(data);
    }

	function initBatData() {
    	if (batData == null) {
    		batData = new batteryData();
    	}
	}

    function getServiceDelegate(){
        return [new BgbgServiceDelegate()];
    }

(:glance)
	function getGlanceView() {
        return [ new MyGlanceView() ];
    }


}

And this is the glance view itself:

using Toybox.WatchUi;
using Toybox.Time           as Date;
using Toybox.Time.Gregorian as Greg;

(:glance)
class MyGlanceView extends WatchUi.GlanceView {

    function initialize() {
        GlanceView.initialize();
    }

    function onUpdate(dc) {
		dc.setColor(Graphics.COLOR_BLACK,Graphics.COLOR_BLACK);
		dc.clear();
		dc.setColor(Graphics.COLOR_GREEN,Graphics.COLOR_TRANSPARENT);

		dc.drawText(10, 0, Graphics.FONT_TINY, "Draw some text", Graphics.TEXT_JUSTIFY_LEFT);


    }

Do println calls as you would with the sim, and on the watch, in \garmin\apps\logs create a <yourprgname>.txt file

OK, I have just to put in a text file and then the println commands are redirected to that file?

To be honest I still believe that the overwritten view is not loaded due to outdated development environtment. I have this from the programmers help:

If widget doesn’t override AppBase.getGlanceView(), default WatchUi.GlanceView will be used, which simply shows the name of the Widget.

This is what I can see: the name of the Widget on my real FR945.

I tried to enable the glance view on another app for my FR945. And this worked - also on my real watch. But to be honest, both implementations look similar. I am really confused.
