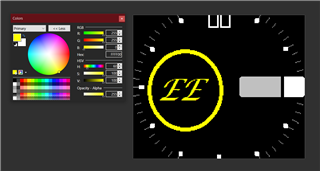

On FR235 I tried to make a new background which includes yellow. I used 0xFFAA00 as yellow and saved it as a 16 bit bitmap image 215x180.
function onLayout(dc) {
deallocateOffscreenBuffer();
// now's a great time to load the background image
resBackground = Ui.loadResource(Rez.Drawables.Background);
}
// update the watch face view
function onUpdate(dc) {
// get local time
var timeNow = Time.now();
var localTimeInfo = Time.Gregorian.info(timeNow, Time.FORMAT_MEDIUM);
clockTime = localTimeInfo;
// set the day of week and day of month strings
var dayOfWeekStr = localTimeInfo.day_of_week.substring(0,3).toUpper();
var dayOfMonthStr = localTimeInfo.day.format("%02d");
targetDc = dc;
// clear the screen
targetDc.setColor( Gfx.COLOR_TRANSPARENT, Gfx.COLOR_BLACK );
targetDc.clear();
// draw the background
targetDc.drawBitmap(0,0,resBackground);
// draw the 12 o'clock marker
targetDc.setPenWidth(9);
targetDc.setColor(cAccentColor, Gfx.COLOR_TRANSPARENT);
targetDc.drawLine(DeviceOverride.TOP_HOUR_MARKER_LEFT_X,0,DeviceOverride.TOP_HOUR_MARKER_LEFT_X,DeviceOverride.TOP_HOUR_MARKER_HEIGHT);
targetDc.drawLine(DeviceOverride.TOP_HOUR_MARKER_RIGHT_X,0,DeviceOverride.TOP_HOUR_MARKER_RIGHT_X,DeviceOverride.TOP_HOUR_MARKER_HEIGHT);
// draw the larger hour marks
targetDc.setColor(cAccentColor, Gfx.COLOR_TRANSPARENT);
targetDc.setPenWidth(5);
for (var i=0; i < 12; i++) {
// skip the mark at the top of the hour and the three o'clock positions
if (i == 9 || i == 0) {
// 9 == top of hour, 0 == 3 o'clock
continue;
}
targetDc.drawLine(DeviceOverride.HOUR_MARK_COORDS[i*4+0],DeviceOverride.HOUR_MARK_COORDS[i*4+1],DeviceOverride.HOUR_MARK_COORDS[i*4+2],DeviceOverride.HOUR_MARK_COORDS[i*4+3]);
}
// draw the date bar with day of week/month
drawDateBar(targetDc, dayOfWeekStr, dayOfMonthStr);
// if activity tracking is on, manually draw/update the steps and move indicators (if so configured)
if ($.gDeviceSettings.activityTrackingOn) {
if (cDisplayStepsIndicator) {
var activityInfo = Toybox.ActivityMonitor.getInfo();
var stepPercent = activityInfo.steps.toFloat()/activityInfo.stepGoal.toFloat();
drawStepsIndicator(targetDc,stepPercent);
}
drawMoveWarning(targetDc);
}
// manually draw/update the battery indicator bars (if so configured)
if (App.getApp().getBooleanProperty("DisplayBatteryIndicator",true)) {
updateBatteryLevel(targetDc);
}
// draw the background and hands
drawBackground(dc);
drawHands(dc, middleX, middleY, clockTime);
if (updateSeconds || ($.gPartialUpdatesAllowed && dcOffscreenBuffer != null)) {
// draw the second hand, if configured
drawHandCenter(dc, middleX, middleY, true);
drawSecondHand(dc, middleX, middleY, clockTime);
} else {
// otherwise, just draw the center rings
drawHandCenter(dc, middleX, middleY, false);
}
}
