Heart rate zones in Garmin Connect Web

5858725 said:

Just one point, how to define intervals. For example, for Z4 interval, why we consider (Z5 min - Z4 min) and not (Z4 max - Z4 min) it's more logical to me, without creating overlapping.

Yes I agree that Z4 max - Z4 min is more logical. To explain why I used Z5 min - Z4 min instead, I will echo what trux said and add:

Historically, Garmin has actually presented your zone BPM ranges in 2 ways: with and without overlapping.

1) In the (old) HR zone settings [**] where you could see both % and BPM at the same time, with overlapping (without gaps). e.g. My real zones would've looked like this:

Z1: 123-137
Z2: 137-151

2) In the time in zones chart, without overlapping (with gaps). e.g. For my real zones:

Z1: 123-136
Z2: 137-151

It is worth noting that the new settings based on BPM show non-overlapping ranges as in 2).

I think 1) (overlapping zones) makes more sense mathematically [*], but end users may find it confusing, which is why Garmin went with 2) (non-overlapping zones) for the time in zones chart.

[*] For example, if my average HR is 136.5, then by 2), it is in neither zone 1 nor 2, but by 1) it is clearly in zone 1.

If you use the overlapping zone ranges from 1), then Z4 max is the same as Z5 min, and Z4 max - Z4 min is the same as Z5 min - Z4 min, so it doesn't matter which one you use.

If you use the non-overlapping zone ranges from 2), then you must use Z5 min - Z4 min for the Z4 calculation.

I think Garmin actually uses overlapping zones internally (this can be seen in a few technical ways, by looking at the Connect IQ SDK or analyzing activity FIT files). Internally, zones actually look like this:

Z1 min, Z1 max,  Z2 max, Z3 max, Z4 max, Z5 max (max HR)

(Ofc these could also be interpreted as half open ranges - ultimately I don't think it matters.)

--

[**]

The old HR zone settings (available on the Connect website for older devices) actually would've looked something like this, which pretty much shows overlapping zones:

       %HRR / BPM
    ...

   |--- 70% / 151
Z2 |
   |--- 60% / 137
Z1 |
   |--- 50% / 123

One problem with 1) (overlapping zones) is that if a value is on the border of 2 zones (like 137), which zone range is it in?

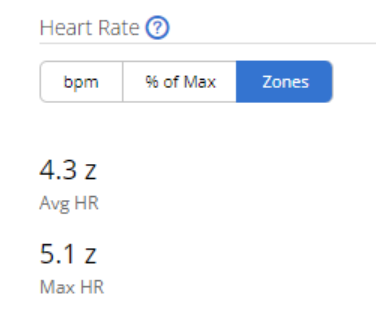

If you use fractional zones, then the fractional zone for 137 is always 2.0 whether you assume 137 is in Z1 or Z2:

Assume 137 is in Z1 and use the overlapping zones:

Z1min + 1.0 + fractional_zone * (Z1max - Z1min) = 137
fractional_zone = 1.0 + (137 - z1min) / (Z1max - z1min)
fractional_zone = 1.0 + (137 - 123) / (137 -123)
fractional_zone = 1.0 + 1
fractional_zone = 2.0

Assume 137 is in Z2 and use the overlapping zones:

Z2min + 2.0 + fractional_zone * (Z2max - Z2min) = 137
fractional_zone = 2.0 + (137 - z2min) / (Z2max - z2min)
fractional_zone = 2.0 + (137 - 137) / (151 - 137)
fractional_zone = 2.0 + 0
fractional_zone = 2.0

(Either calculation would also work if you used the non-overlapping zones, but ofc you'd have to adjust the formulas)

In other words, in terms of fractional zones, 137 would be "100% into Z1",  "0% into Z2", or 2.0.

If you use integer zones, you could just Garmin's non-overlapping presentation and say that 137 is in zone 2 (which also makes a lot of sense given that the fractional zone is 2.0)

I will also say that for fractional zones, there a couple of uncertainties:

- For 0.x (HR lower than zone 1), it's not clear what "zone 0 min" is (I *think* it might be a fixed value like 30, the minimum hr that Garmin watches will measure)

- For 6.x (HR higher than max HR), it's not clear what "zone 6 max" is. (Note that zone 5 max is your max HR in user profile). I *think* it might be 220 or some other arbitrary absolutely max HR.

If you ever have examples of these (0.x should actually be easy because your recovery HR "fractional zone" will almost certainly be less than 1.0 *), you can calculate these unknown constants yourself.

[*] Ofc it makes little sense to present recovery HR as a "fractional zone", since it's not an absolute HR measurement but a relative calculation (the difference between HR measurements when you stop exercising and 2 minutes later), and HR zones only make sense for absolute HR measurements, but Garmin does it anyway....

EDIT I did the math and it looks like:

- "zone 0 min" is actually 0 (or maybe 1)

- there is no zone 6 max, because if you exceed your max HR, Garmin just displays 6.0 anyway, even though it will show "% of Max" as being higher than 100%.
