Tacx Flux 2 thru axle adapter install

Flux 2

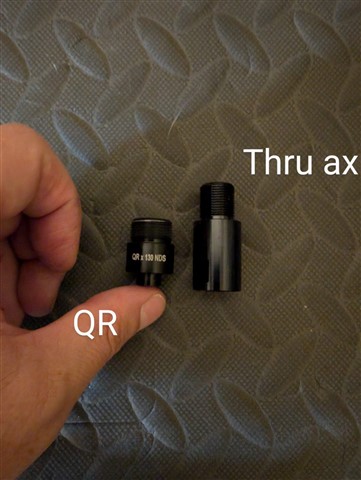

Switching out QR to thru Axle

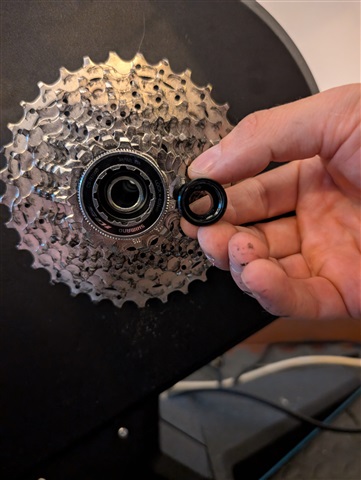

I removed the QR plugs with a 5mm. But can't get the new thru axle plug to screw on either the cassette or the magnet side because they are different size threads.

Did I buy the wrong adapter? Or I'm being an idiot?

0 Alex Masalovich 2 months ago

Tacx direct drive trainers come with two different axle types:

support.garmin.com/.../
support.garmin.com/.../

0 paul.swidzinski 2 months ago in reply to Alex Masalovich

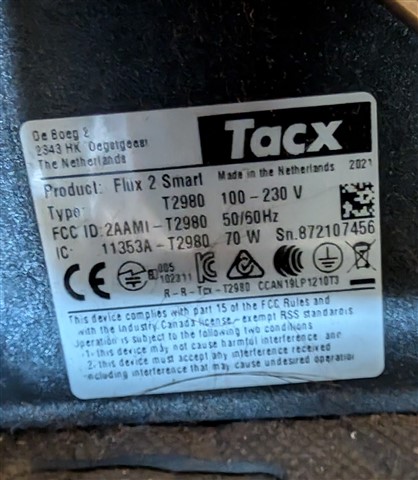

I have the type 2 verified by measuring the inner diameter of the axle at 12mm and my plugs have white writing on them.

0 paul.swidzinski 2 months ago in reply to paul.swidzinski

And I bought this adapter which says it's for type 1.

www.garmin.com/.../697123

Can't find one that says it's for type 2. Can you help me?

0 Alex Masalovich 2 months ago in reply to paul.swidzinski

Ask Garmin support. They may send you this spare part for free.

I see this kit for type 2 in bike shops, for example here:
r2-bike.com/GARMIN-Tacx-Axle-adapter-kit-for-Neo-2T

0 paul.swidzinski 2 months ago in reply to paul.swidzinski

Actually that's exactly what happened. Thanks for the help

This is the part for future people

www.garmin.com/.../729990

0 Alex Masalovich 2 months ago in reply to paul.swidzinski

paul.swidzinski said:
This is the part for future people

www.garmin.com/.../729990

With adding to cart:
www.garmin.com/.../S0054

0 SemaMare 2 months ago in reply to Alex Masalovich

Is this part for Neo2T compatible with Flux S. I have the same problem cant find orginal part for type 2, but there is a lot for Neo 2t who is also type 2. I need this 12mm adapters?

0 Alex Masalovich 2 months ago in reply to SemaMare

SemaMare said:
Is this part for Neo2T compatible with Flux S. I have the same problem cant find orginal part for type 2, but there is a lot for Neo 2t who is also type 2. I need this 12mm adapters?

If the type of the trainer axle matches, then the adapters themselves match. The sets for Flux S/2 and Neo2T differ in spacers, washers and bolts:
https://www.garmin.com/en-US/p/729990/pn/S0054
https://www.garmin.com/en-US/p/719990/pn/S2875.01

A separate kit for 135mm Thru-axle is available:
www.garmin.com/.../T2885
