Generate FIT obdii_data

Former Member over 4 years ago

Hello,

I try to generate a fit file to import in Virb edit.

I find for record data but for obdii_data it dos'nt work.

Data,0,record,timestamp,966956312,s,position_lat,572046567,semicircles,position_long,2474351,semicircles,distance,4419.94,m,altitude,51.03,m,speed,22.096,m/s,heart_rate,164,bpm,power,7.821,rpm,,,,,,,,,, => OK

Data,1,obdii_data,timestamp,966956312,s,timestamp_ms,0,,pid,17,,raw_data,16,%,,,,,,,,,,,,,,,,,,,,,, => Not OK (Example for Throttle position at 16%).

Can you help me ? please.

Fit file and csv file here :

https://www.transfernow.net/00dCIa032021

0 Former Member over 4 years ago

Maybe someone can give me a .fit file with OBDII ?

0 nwillink over 4 years ago

I have no experience of obdii but your fit file seems to lack the some basic garmin ID messages:

File_ID

File_Creator

These normally precede the record

Perhaps there also should be an event of some sorts.

HTH

Nick

0 HerrRiebmann over 4 years ago in reply to Former Member

I´ll give you a fit-file with OBD II data, later.
Must have several around on my other PC. Otherwise I´ll just create one for you.

0 HerrRiebmann over 4 years ago in reply to Former Member

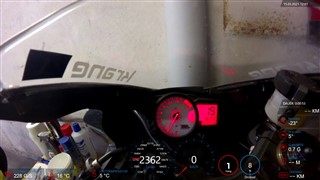

Created a file from my motorbike. If you need any further info or data, let me know!

2021-03-15-12-59-23.fit

Good luck

0 nwillink over 4 years ago in reply to HerrRiebmann

Thanks for the fit file which seem to contain mostly accelerometer and gyroscope data with some obdii time intervals - never seen one of those before but I see it needs to be linked to a video file which is done automatically by the Virb Editor.

I have no idea why this should cause the problem you've mentioned. Sorry :(

0 Former Member over 4 years ago in reply to HerrRiebmann

thank you a lot, i will study this.

0 HerrRiebmann over 4 years ago in reply to nwillink

There should be around 5-7 OBD II Messages per second. As you can see: RPM, Temperature, Throttle, Airflowrate and Engineload (which I faked for Gear). Also Speed, which is just zero, because my motorbike does not submit that.

Have you converted it with the SDK java tool? I made bad experience with the C# solution, which somehow did not cover any OBD message. But it was some time ago...

0 nwillink over 4 years ago in reply to HerrRiebmann

I used my own vb program to analyse the content of a fit file and at times check the units of unknown fields with the sdk tool.
